    Vulcan Carabiner

    Part # : M073CA00

    Description

    • High-strength steel carabiner for use in harsh environments, particularly suitable for setting up multiple anchors
    • Easier handling:
      - fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
      - Keylock system to avoid any involuntary snagging of the carabiner
      - may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
    • H cross-section:
      - ensures an optimal strength/weight ratio
      - protects markings from abrasion
    • Two locking systems available:

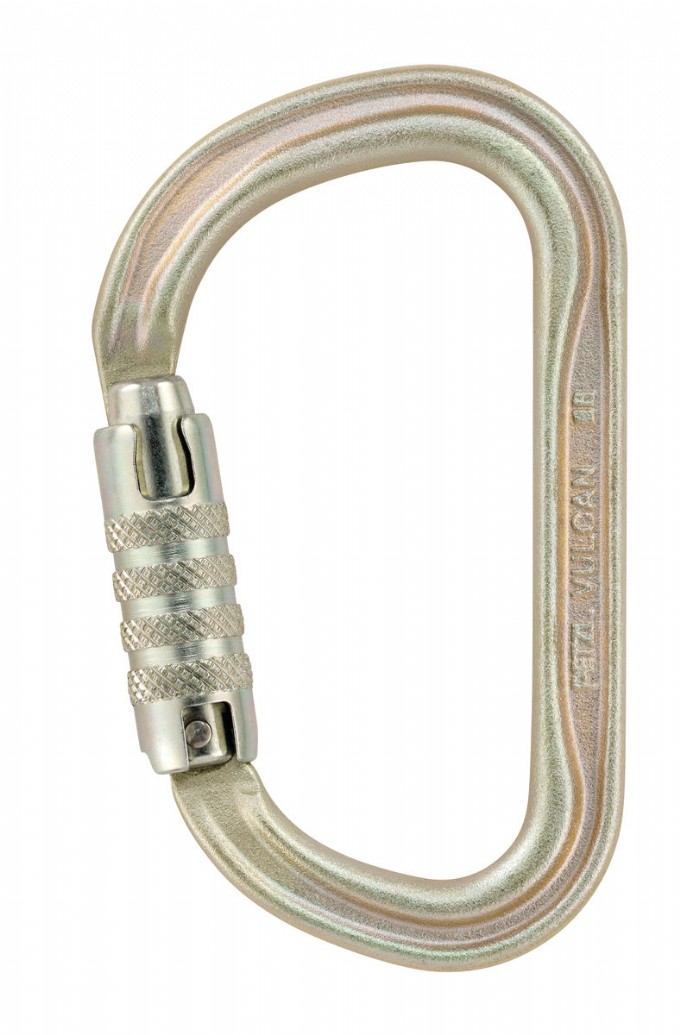

      - TRIACT-LOCK: automatic locking with triple-action gate opening

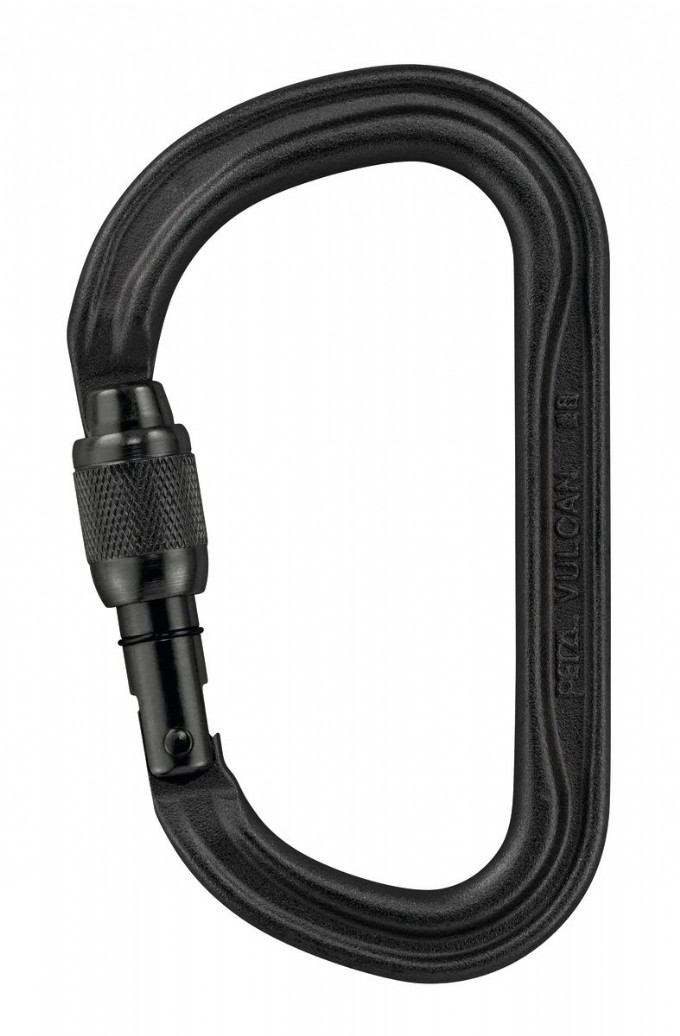

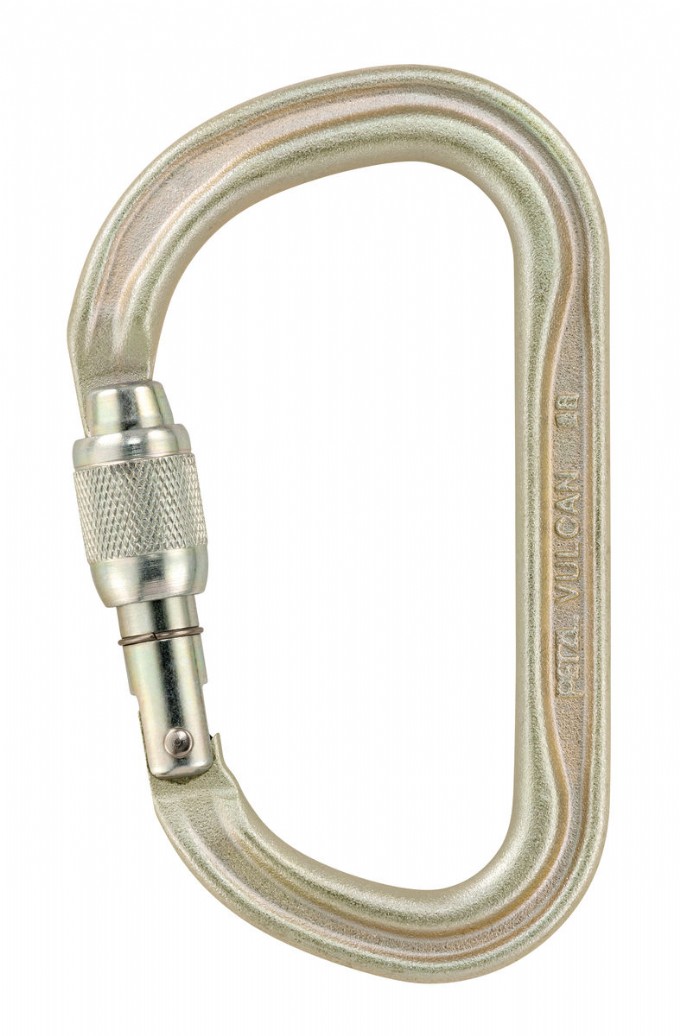

      - SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked



    Specifications

    • Material(s): steel



    References

    References

    M073BA00

    M073AA00

    M073CA00

    M073CA01

    M073AA01

    Locking system

    TRIACT-LOCK

    SCREW-LOCK

    TRIACT-LOCK

    TRIACT-LOCK

    SCREW-LOCK

    Certification(s)

    CE EN 362, NFPA 1983 General Use, EAC, UKCA

    CE EN 362, NFPA 1983 General Use, EAC, UKCA

    CE EN 362, ANSI Z359.12, NFPA 1983 General Use, CSA Z259.12, EAC, UKCA

    CE EN 362, ANSI Z359.12, NFPA 1983 General Use, CSA Z259.12, EAC, UKCA

    CE EN 362, NFPA 1983 General Use, EAC, UKCA

    Color(s)

    gold

    gold

    gold

    black

    black

    Major axis strength

    45 kN

    45 kN

    45 kN

    45 kN

    45 kN

    Minor axis strength

    16 kN

    16 kN

    16 kN

    16 kN

    16 kN

    Open gate strength

    18 kN

    18 kN

    18 kN

    18 kN

    18 kN

    Gate opening

    28 mm

    29 mm

    26 mm

    26 mm

    29 mm

    Weight

    245 g

    235 g

    265 g

    265 g

    235 g

    Guarantee

    3 years

    3 years

    3 years

    3 years

    3 years

    Inner Pack Count

    1

    1

    1

    1

    1



    Petzl

    Images are representative of product. Product may not be exactly as shown.
