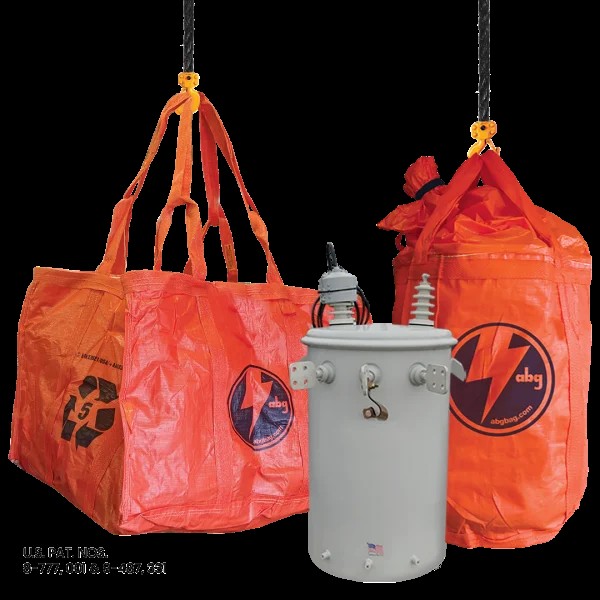

BOB™ POLE & PAD MOUNT TRANSFORMER CONTAINMENT BAGS

Part # : BOB - 26, 32, 42, 48, 60, 70, 72

MANY AVAILABLE SIZES FOR CONTAINING, TRANSPORTING, STORING, REPAIRING AND RECYCLING LEAKING POLE-MOUNT AND PAD-MOUNT TRANSFORMERS

When it comes to safely containing and transporting PCB-contaminated, oil-filled equipment, ABG Bag Inc. offers the BOB™ Pole & Pad Mount Transformer Containment Bags — a product that stands out as the only UN-rated, DOT, TSCA, and EPA certified solution in the industry. Designed to offer exceptional strength, safety, and versatility, BOB™ Transformer Bags are the premier choice for companies seeking the highest standards in safety and compliance for their field operations.

ABG’s BOB™ bags are the gold standard in transformer containment, ensuring safe lifting, handling, and transport of transformers that are often used in high-risk scenarios where the handling of oil-filled equipment must be done with precision. As a result, BOB™ Transformer Bags serve as an insurance policy not only for line workers but also for the environment.

BIGGER, STRONGER, AND SAFER: THE BOB™ ADVANTAGE

The BOB™ Pole & Pad Mount Transformer Containment Bags are engineered to be bigger and stronger to meet the needs of modern utility operations. As transformers continue to grow in size, BOB™ bags have been expanded to accommodate today’s larger, high-efficiency transformers. With a stronger build, these containment bags are now able to handle even the heaviest equipment, providing a secure and reliable solution for every lifting, transporting, and containment need.

•  DOT, TSCA & EPA Compliant
•  RATED 6X CAPACITY
• Self-Lifting
• Easily Stored on Utility Truck
• Safely Contain PCB’s and Misc. Contaminants
• Avoid Preventable Spills
• Storm Preparedness
• Recyclable

ITEM #	SIZE	SUGGESTED USE	CAPACITY
BOB-26	26”D x 30”H 660mm D x 762mm H	SMALL POLE-MOUNTED 10kVA to 25VA	1250 lbs 567 kg
BOB-32	32”D x 38”H 813mm D x 965mm H	MEDIUM POLE-MOUNTED 37.5kVA to 75kVA	1750 lbs 794 kg
BOB-42	42”D x 48”H 1067mm D x 1219mm H	LARGE POLE-MOUNTED 100kVA to 167kVA	2000 lbs 907 kg
BOB-48	48”L x 48”W x 36”H 1219mm L x 1219mm W x 914mm H	SINGLE-PHASE, PAD-MOUNT 25kVA to 100kVA	3000 lbs 1361 kg
BOB-60	60”L x 60”W x 36”H 1524mm L x 1524mm W x 914mm H	SINGLE-PHASE, PAD-MOUNT 75kVA to 167kVA	4000 lbs 1814 kg
BOB-70	60”L x 60”W x 60”H 1524mm L x 1524mm W x 1524mm H	POLE-MOUNT 250kVA, 333kVA & 500kVA	4000 lbs 1814 kg
BOB-72	72”L x 72”W x 60”H 1829mm L x 1829mm W x 1524mm H	SMALL THREE-PHASE, PAD-MOUNT 30kVA to 500kVA	7500 lbs 3402 kg



Images are representative of product. Product may not be exactly as shown.
