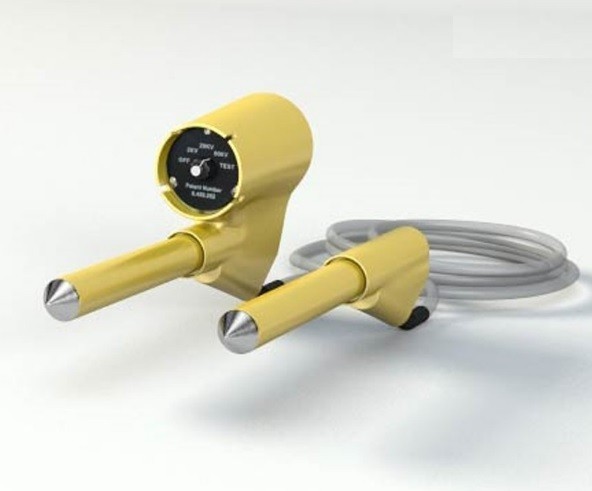

0-50kv All Purpose Meter c/w 8' Cable & Storage Bag
Part # : PD50A
The easy, all-in-one phasing voltmeter with numerous applications. The PD Series® All-Purpose Utility Meters are phasing voltmeters designed to replace numerous other meters that feature a single range and/or perform a single function.
The PD Series® can be used for these applications:
Capacitive Test Point Phasing Meter
Regulator Neutral Detector
Measure True RMS Voltages
Commercial/Industrial Meter
Phasing or Measuring Secondary Voltages, Replacing 600V Voltmeters
Conventional Phasing Voltmeter for Overhead and URD Systems from 0-50kV Phase to Phase
DC and Multiple Frequency AC up to 400Hz
High Line Resistive Voltmeter*
Phase Sequence/Rotation Meter*
DC Leakage Tester* (lightning arrestor tester)
Hi Pot URD Cable*
DC Cable Tracer*
*Optional Adapter Required
This is a conventional type Phasing Voltmeter with numerous other uses. Measures AC or DC voltage with unbelievable precision and accuracy. May be used on primary or secondary voltages or capacitive test points. There is nothing to compare to it on the market today!
